- Serve as supports, stops and thrust pads
- Application sectors: machine and fixture construction, assembly
- style P: optimum protection against damage to sensitive surfaces
- O-ring for protection against dirt and foreign particles
Description
Material
Body carbon steel.
Ball:
Style P stainless steel with polyurethane surface.
Ball:
Style P stainless steel with polyurethane surface.
Version
Body tempered, black oxidized.
Ball:
Style O surface comparable to 100 grade abrasive grit.
Ball:
Style O surface comparable to 100 grade abrasive grit.
Note
The self-aligning pads are used to support and clamp unmachined and machined workpieces.
They also serve as stops, supports and thrust pads in fixtures and toolmaking.
Ball secured against rotation.

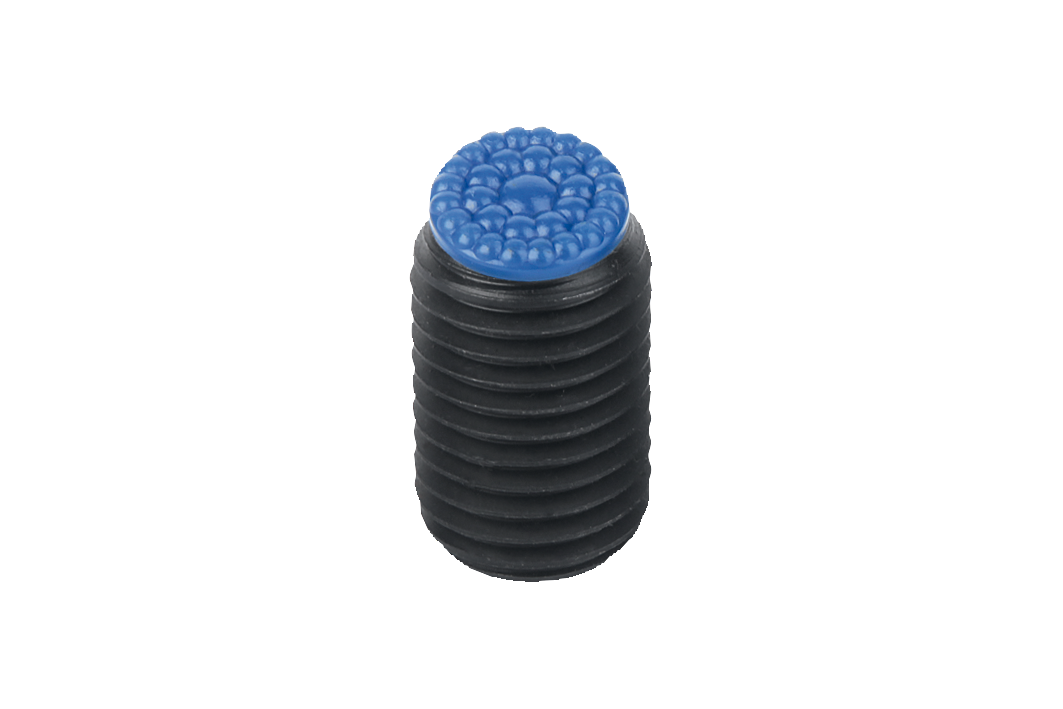

style P: The polyurethane surface is vulcanised firmly to the ball. It is abrasion resistant and does not discolor. Offers optimum protection against damage to delicate surfaces. The pearl-like surface gives a firm grip and allows air to escape so as to prevent any suction effect between the contact surface and the self-aligning pads.
They also serve as stops, supports and thrust pads in fixtures and toolmaking.
Ball secured against rotation.
style P: The polyurethane surface is vulcanised firmly to the ball. It is abrasion resistant and does not discolor. Offers optimum protection against damage to delicate surfaces. The pearl-like surface gives a firm grip and allows air to escape so as to prevent any suction effect between the contact surface and the self-aligning pads.
Advantages
The built-in O-ring holds the ball in place and keeps dirt and foreign particles out, ensuring unistyle movement.
The hexagon socket allows easy adjustment and positioning in through holes.
The hexagon socket allows easy adjustment and positioning in through holes.
