Material
aluminum.
Version
hard-coated.
Show more
Show less
Description
Material
aluminum.
Version
hard-coated.
Note
For use with the jack screws 02156.
Scope of delivery
grub screw M5.

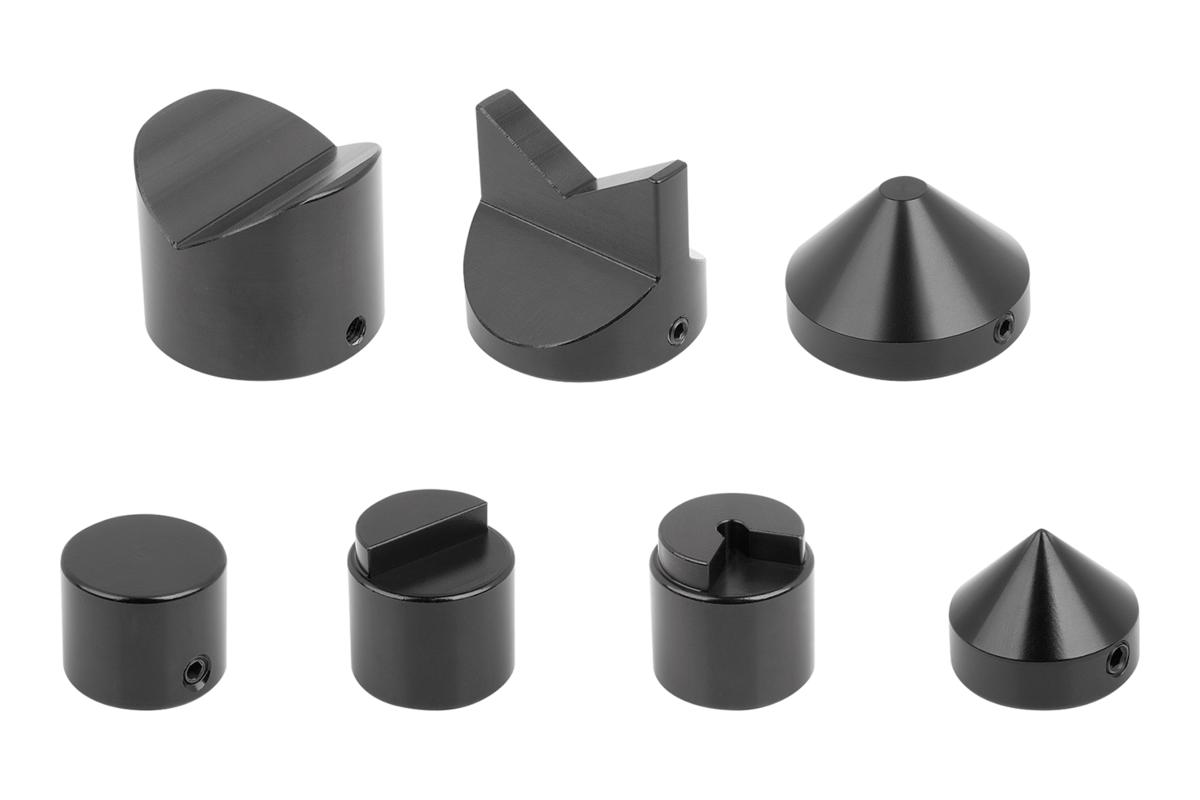

Drawing reference
1) Tapered attachment pointed
2) Tapered attachment flattened
3) Prism attachment narrow
4) Prism attachment wide
5) Flat attachment 0°
6) Flat attachment 180°
7) Flat attachment 90°
2) Tapered attachment flattened
3) Prism attachment narrow
4) Prism attachment wide
5) Flat attachment 0°
6) Flat attachment 180°
7) Flat attachment 90°
Accessory
Jack screws 02156.
