Material
Locating bush stainless steel 1.4305.
Locknut brass.
Version
Locating bushing bright.
Locknut nickel-plated.
Locknut nickel-plated.
Show more
Show less

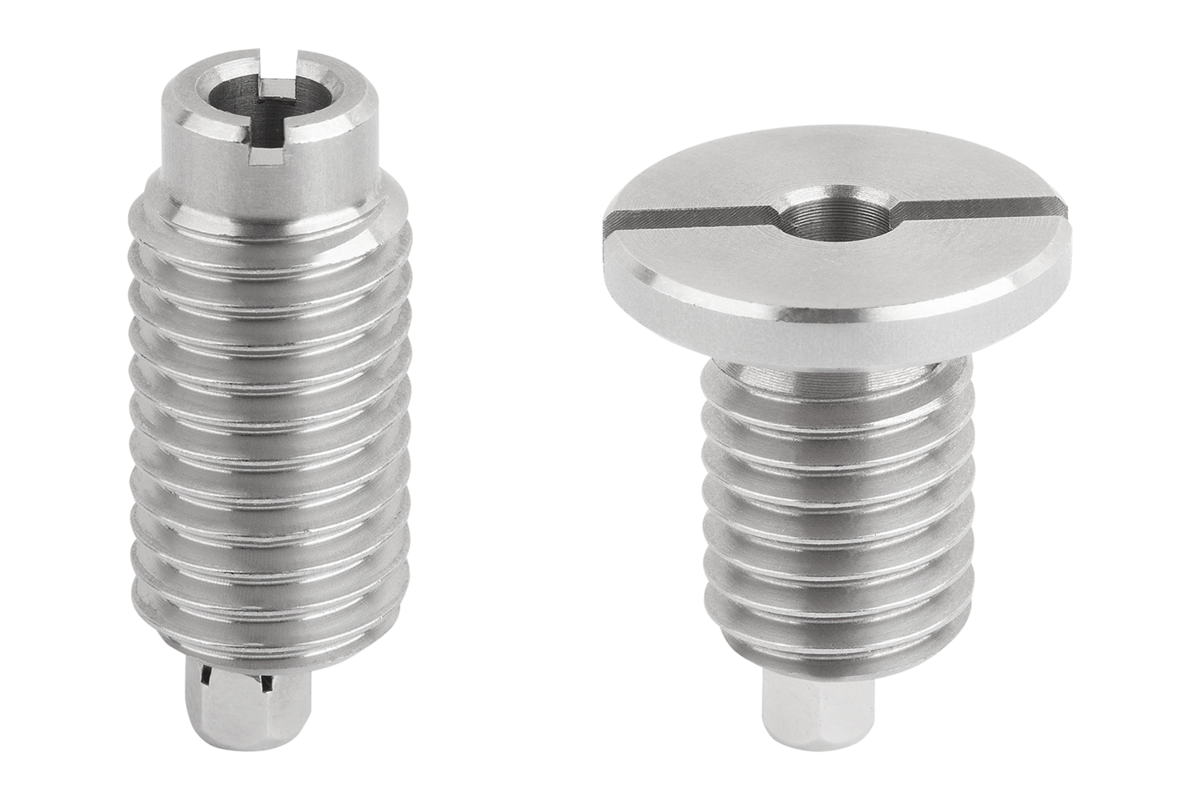

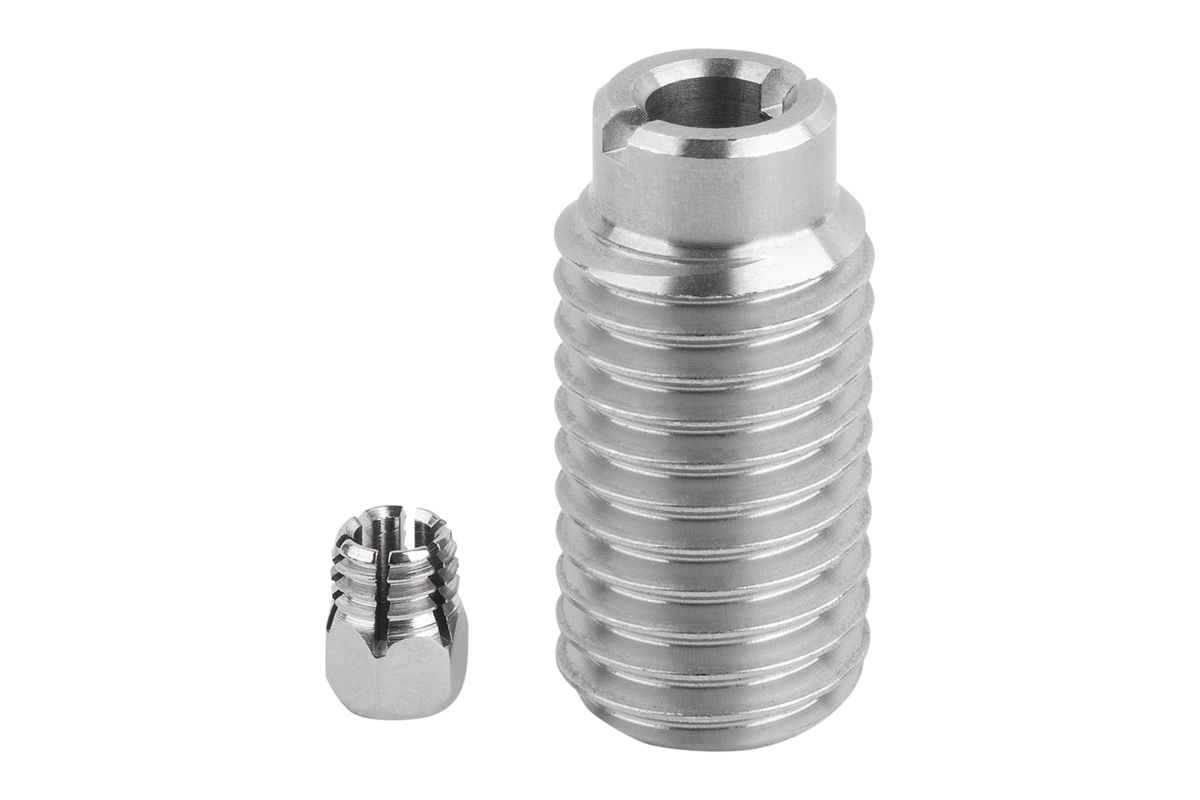

Locating bushes, stainless steel for status sensor, style A, full thread
from
$41.61
plus sales tax
plus shipping costs

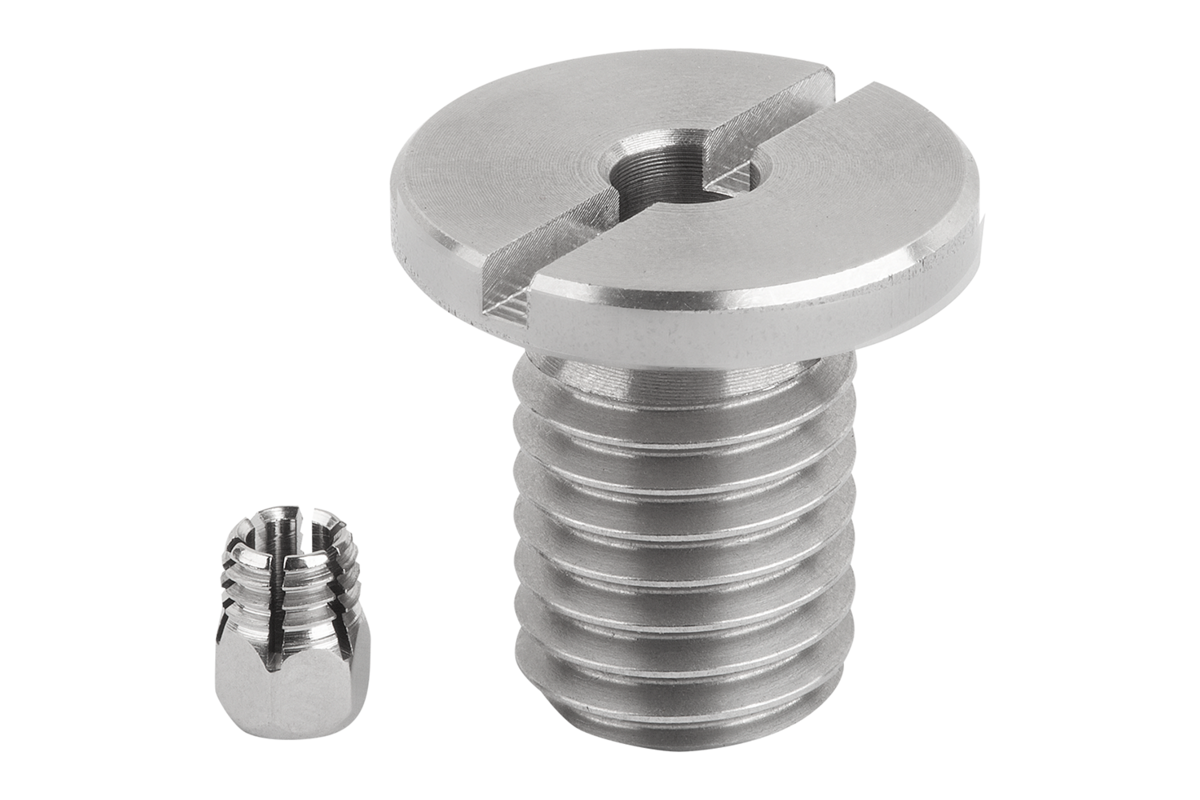

Locating bushes, stainless steel for status sensor, style B, with thread and collar
from
$45.09
plus sales tax
plus shipping costs
Description
Product description
Locating bushinges style a locating point for ball lock pins or locking pins and enable these to be securely and precisely engaged herein.
The locating bushinges for status sensor have a locknut for installing a Ø3 mm sensor into the bushing. The sensor enables electronic feedback as to whether a pin is located in the locating bushing or not.
When using several bushinges, it can be determined in which one a ball lock pin or locking pin is located.
The locating bushinges for status sensor have a locknut for installing a Ø3 mm sensor into the bushing. The sensor enables electronic feedback as to whether a pin is located in the locating bushing or not.
When using several bushinges, it can be determined in which one a ball lock pin or locking pin is located.
Material
Locating bush stainless steel 1.4305.
Locknut brass.
Version
Locating bushing bright.
Locknut nickel-plated.
Locknut nickel-plated.
Note
The locknut is supplied loose.
Max. tightening torque for the locknut: 1.2 Nm.
Max. tightening torque for the locknut: 1.2 Nm.
Application
Locating bushinges in conjunction with a status sensor enable actuation-dependent process control. In addition, it can be determined whether a ball lock pin or locking pin is in the desired position.
Assembly
The sensor is fastened into the bushing using the locknut and then adjusted axially. The locknut is tightened to fixate the sensor in the final position.
The detailed procedure is described in the installation instructions.
The detailed procedure is described in the installation instructions.

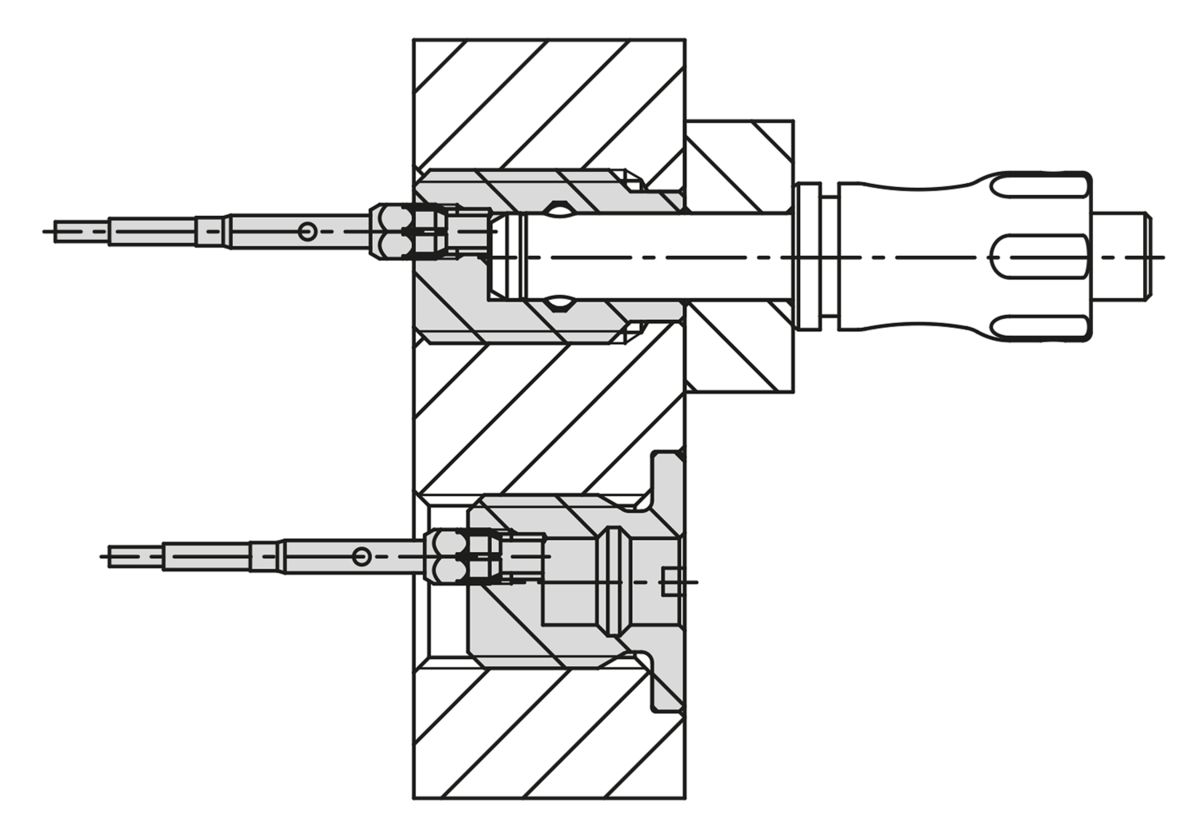

Drawing reference
Style A: full thread
Style B: with thread and collar
Style B: with thread and collar
