Material
Brass.
Version
nickel-plated.
Show more
Show less
Description
Material
Brass.
Version
nickel-plated.
Note

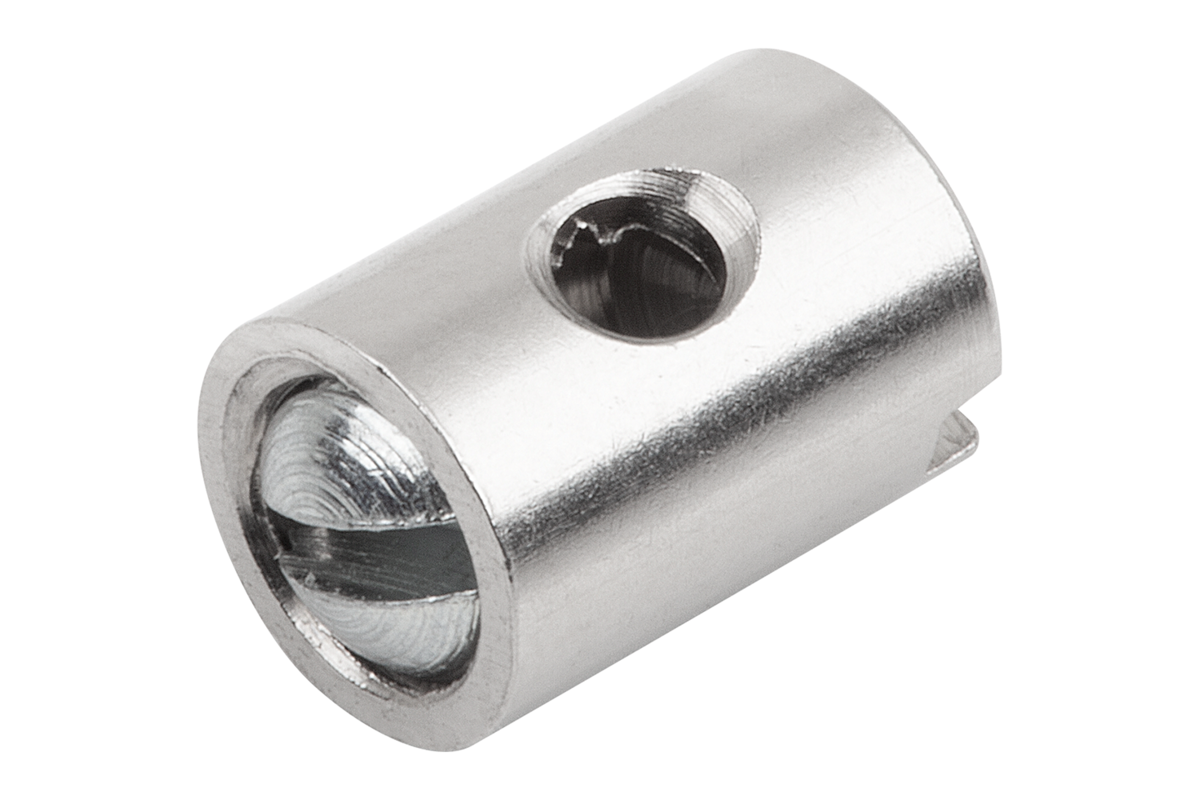

The screw nipple is a replacement part for the indexing plungers with remote actuation 03096-10.
Drawing reference
1) grub screw
Accessory
Wire cable with ball 03096-15.
Traction sleeve with inner tube 03096-20.
End sleeve 03096-25.
Setscrew 03069-30.
Hex nut 07212.
Traction sleeve with inner tube 03096-20.
End sleeve 03096-25.
Setscrew 03069-30.
Hex nut 07212.
