Material
Housing and push button steel or stainless steel.
Ball, spring and snap ring stainless steel.
O-ring FKM.
Ball, spring and snap ring stainless steel.
O-ring FKM.
Version
Housing nickel-plated or bright.
Knob tempered and nickel-plated.
Ball tempered.
Knob tempered and nickel-plated.
Ball tempered.
Show more
Show less
Description
Material
Housing and push button steel or stainless steel.
Ball, spring and snap ring stainless steel.
O-ring FKM.
Ball, spring and snap ring stainless steel.
O-ring FKM.
Version
Housing nickel-plated or bright.
Knob tempered and nickel-plated.
Ball tempered.
Knob tempered and nickel-plated.
Ball tempered.
Note

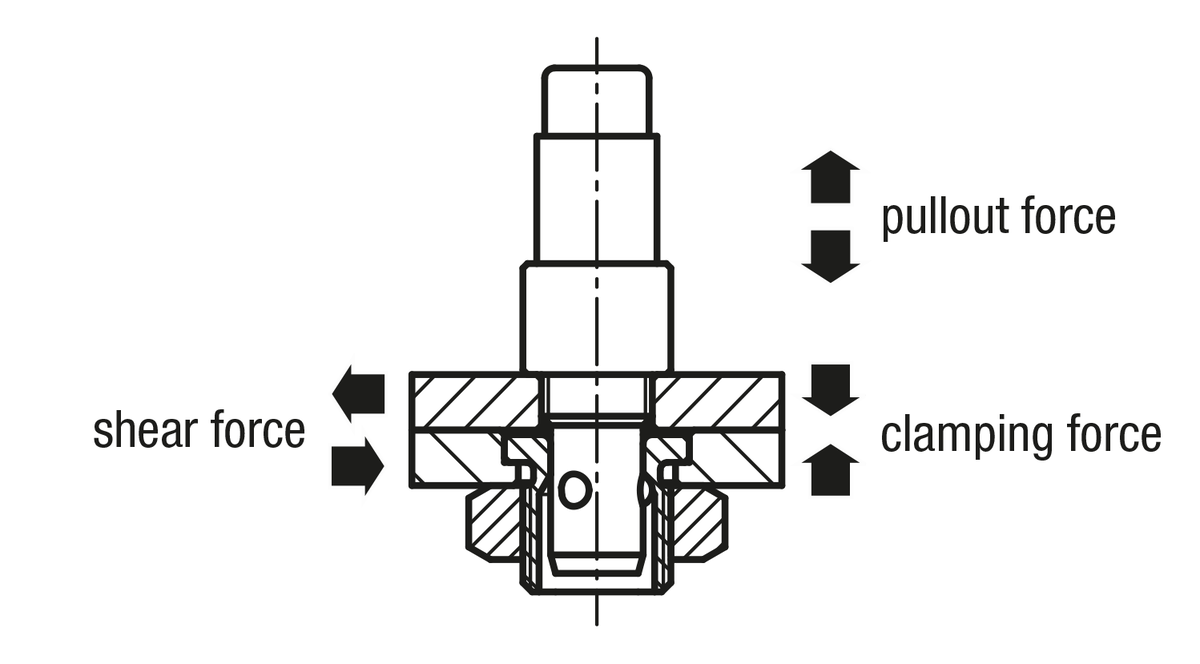

Mounting dimensions style A for plate thickness 6 mm.
Mounting dimensions style B for plate thickness 6 to 16 mm.
A gap of more than 0.1 mm appears between the plates if the retaining force is exceeded.
Mounting dimensions style B for plate thickness 6 to 16 mm.
A gap of more than 0.1 mm appears between the plates if the retaining force is exceeded.
Attention
The specified pullout forces only apply in conjunction with locating bushing 03192-02.
Accessory
Locating bushing 03192-02.
