- Turning the grip through 180° retracts the indexing pin.
- Smooth sleeve, Connecting option via adapter sleeve
Description
Product description

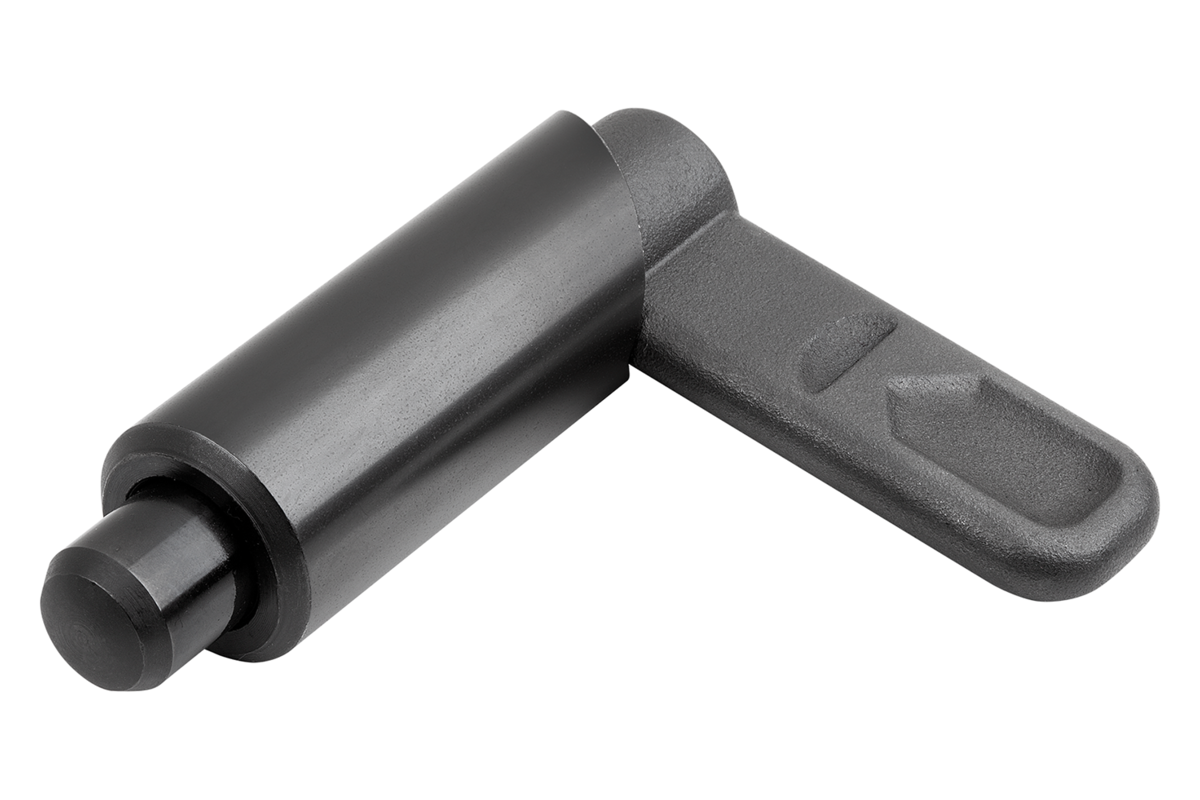

Cam-action indexing plungers are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted.
Material
Grip 1.0503.
Sleeve 1.0403.
Indexing pin free-cutting steel.
Spring 1.4310.
Sleeve 1.0403.
Indexing pin free-cutting steel.
Spring 1.4310.
Version
Sleeve and grip black oxidized.
Indexing pin hardened, ground and black oxidized.
Spring bright.
Indexing pin hardened, ground and black oxidized.
Spring bright.
Note
If the cam-action indexing plunger is to be welded on, the sleeve should be tack welded so that the spring is not thermally damaged from the high temperatures.
Advantages
Turning the grip through 180° retracts the pin.
Smooth sleeve, Connecting option via adapter sleeve
Smooth sleeve, Connecting option via adapter sleeve
On request
Special versions.
Accessory
Positioning bushings 03099-50, 03099-60, 03099-61.
