Material

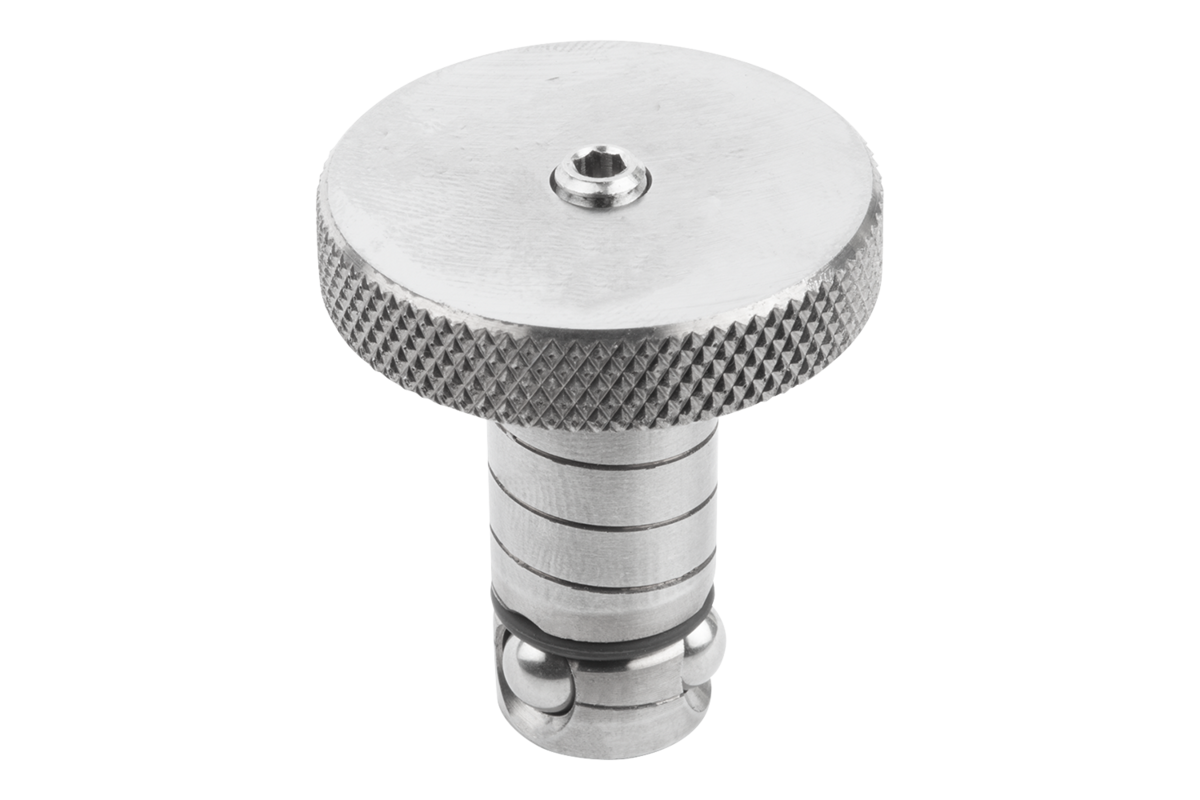

Locating cylinder and ball stainless steel 1.4542.
Version
Locating cylinder and ball hardened to min. 40 HRC, bright.
Show more
Show less
Description
Material
Locating cylinder and ball stainless steel 1.4542.
Version
Locating cylinder and ball hardened to min. 40 HRC, bright.
Note

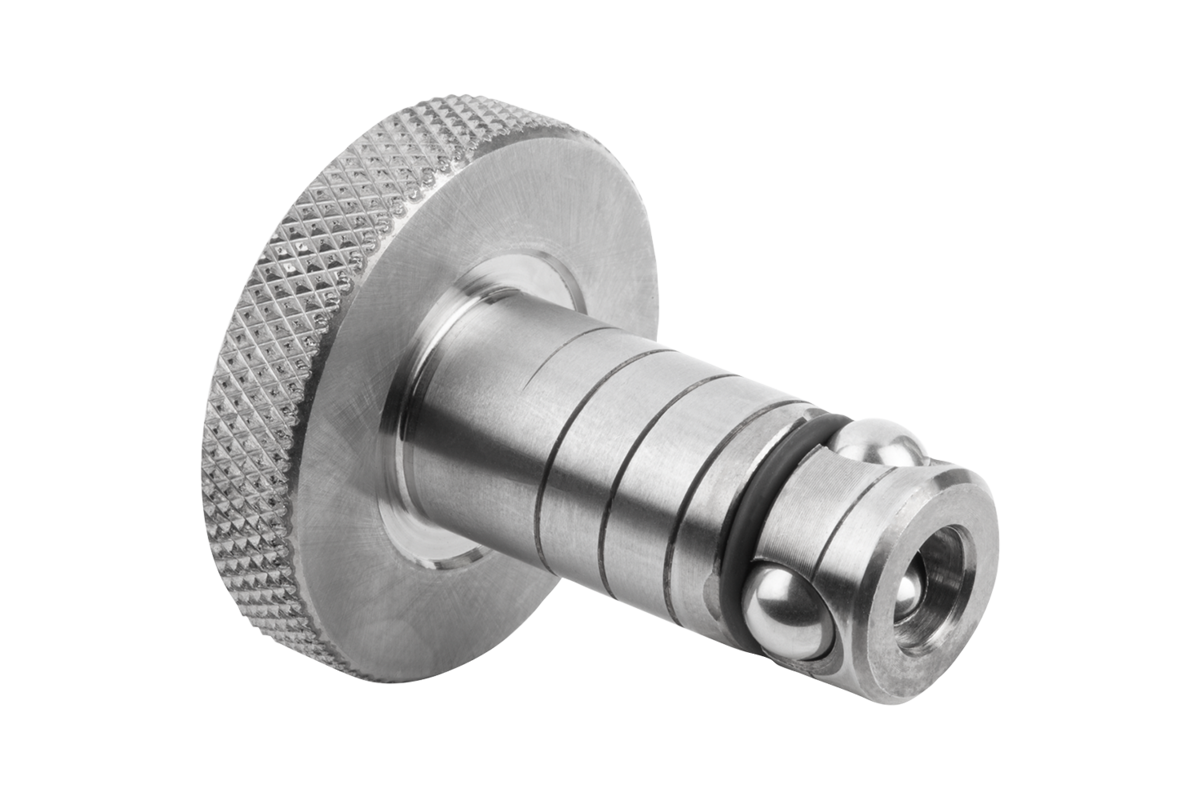

By tightening the thrust screw (D2) the center ball is pressed downwards and in turn forces the three locking balls outwards, where they locked in the receiver bushing.
With this easy to use system machine set-up times are up to twelve times shorter than when conventional methods are used.
