Material
Carbon steel.
Version
Tempered and black oxidized.
Precision diameters and guide faces ground.
Precision diameters and guide faces ground.
Show more
Show less
Description
Product description

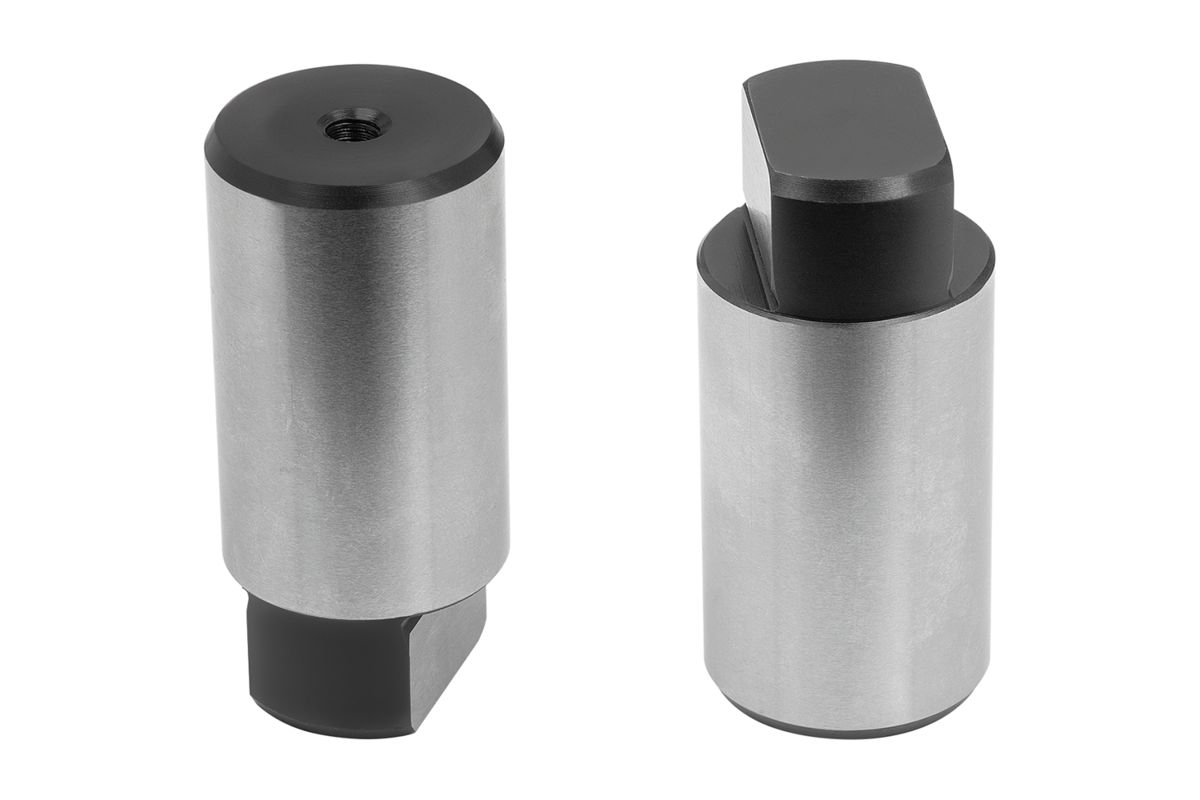

Locating pins are used to position basic elements on machine tables.
Material
Carbon steel.
Version
Tempered and black oxidized.
Precision diameters and guide faces ground.
Precision diameters and guide faces ground.
Note
Style A
Locating pin for baseplates with grid holes.
Style B
Locating pin for baseplates with T-slots.
Locating pin for baseplates with grid holes.
Style B
Locating pin for baseplates with T-slots.

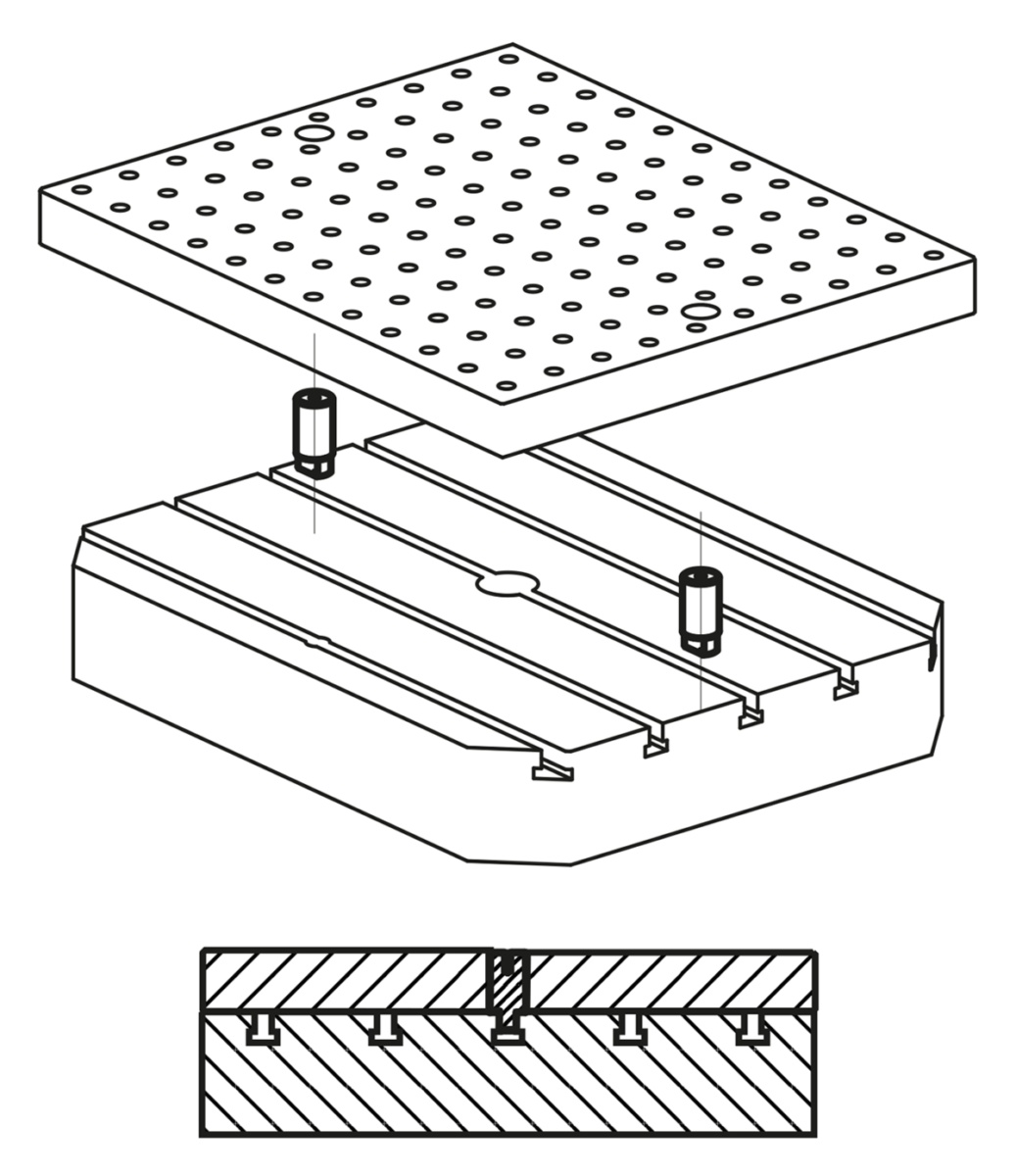

Drawing reference
1) extractor hole
Accessory
Baseplates 01126.
