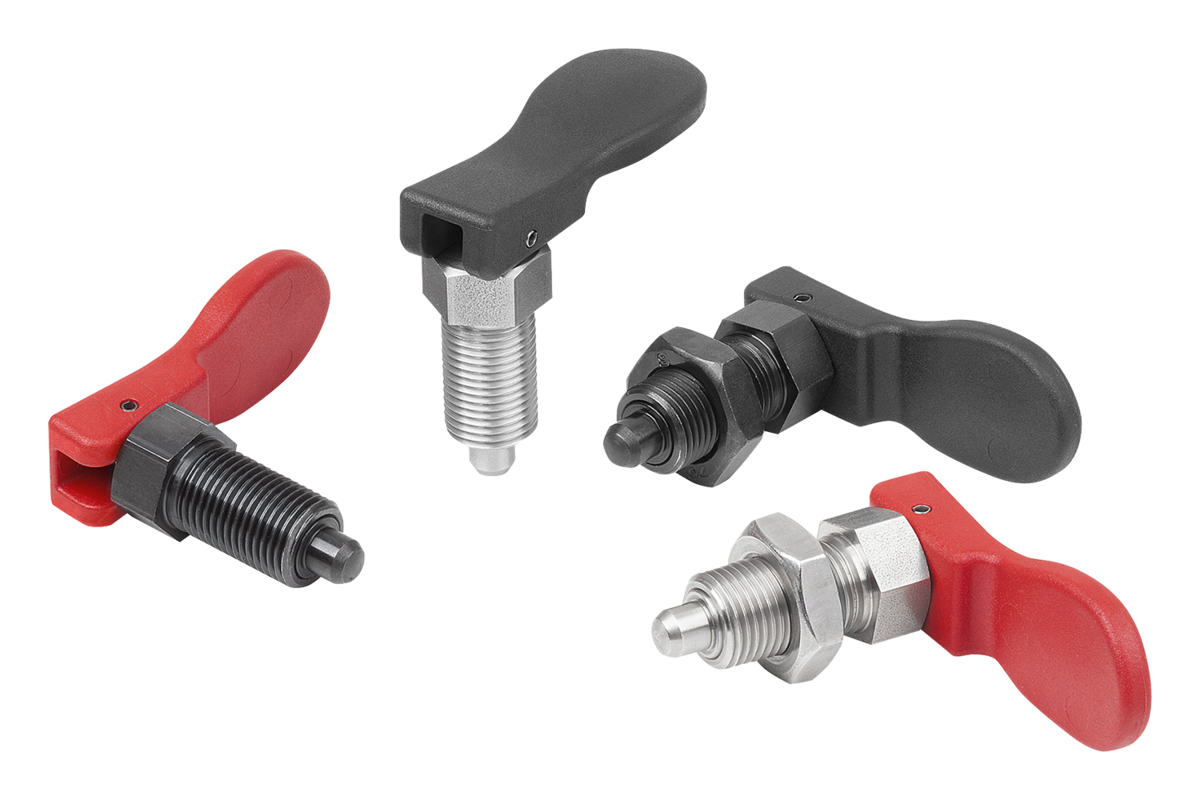

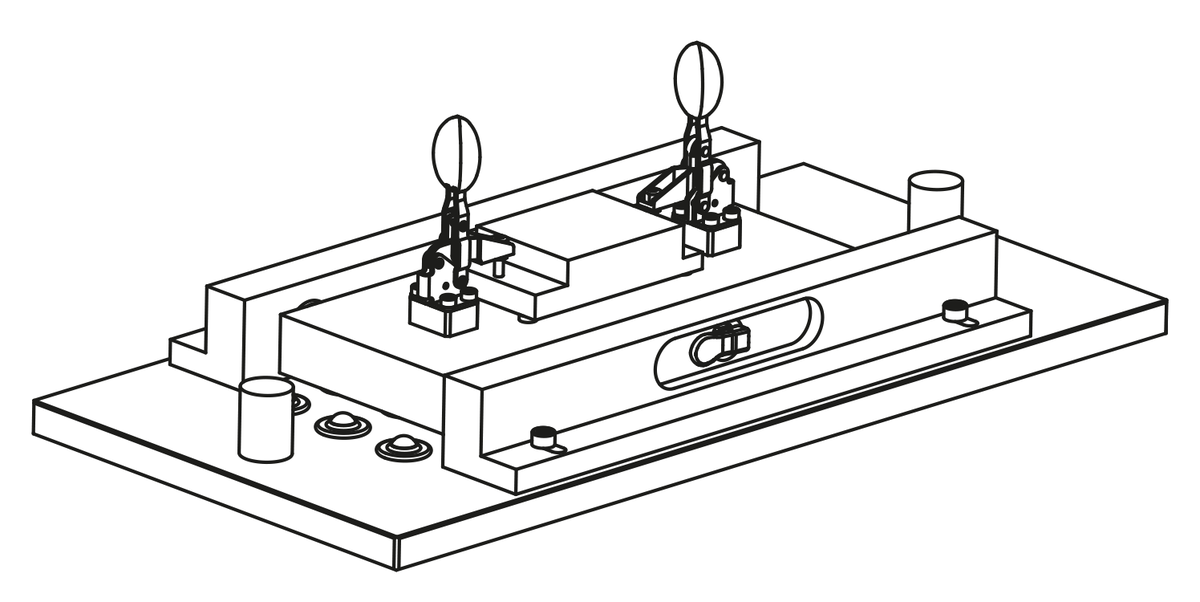

Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces. A new locking position can be set only after the plunger has been manually disengaged. With this indexing plunger a cam lever is used to retract the pin. The indexing plunger remains unlocked as long as the handle is positioned over the dead center of the cam.
The ergonomic cam lever enables light handling with low effort.
Material

Steel version:

Grub screw and indexing pin steel.



Stainless steel version:

Threaded sleeve 1.4305.

Indexing pin 1.4305.

Handle fibreglass reinforced thermoplastic PPA (high temperature resistant).

Version
Steel version:
threaded body, black oxidized.
Indexing pin hardened, ground and black oxidized.

Stainless steel version:
threaded body, bright.
Indexing pin ground and left bright.

Grip black or traffic red RAL3020.
Temperature range
Continuous operating temperature acc. to IEC 216 max. 160°C.
Temporary operating temperature max. 250°C.
Advantages
Simple and quick operation.
Suitable for high temperature applications.
With integrated detent function.
On request
Special versions.
Drawing reference
Style A: without locknut
Style B: with locknut
Accessory
Spacer rings 03089
Positioning bushes for indexing plunger 03099-50
Mounting Brackets, metric 03099
