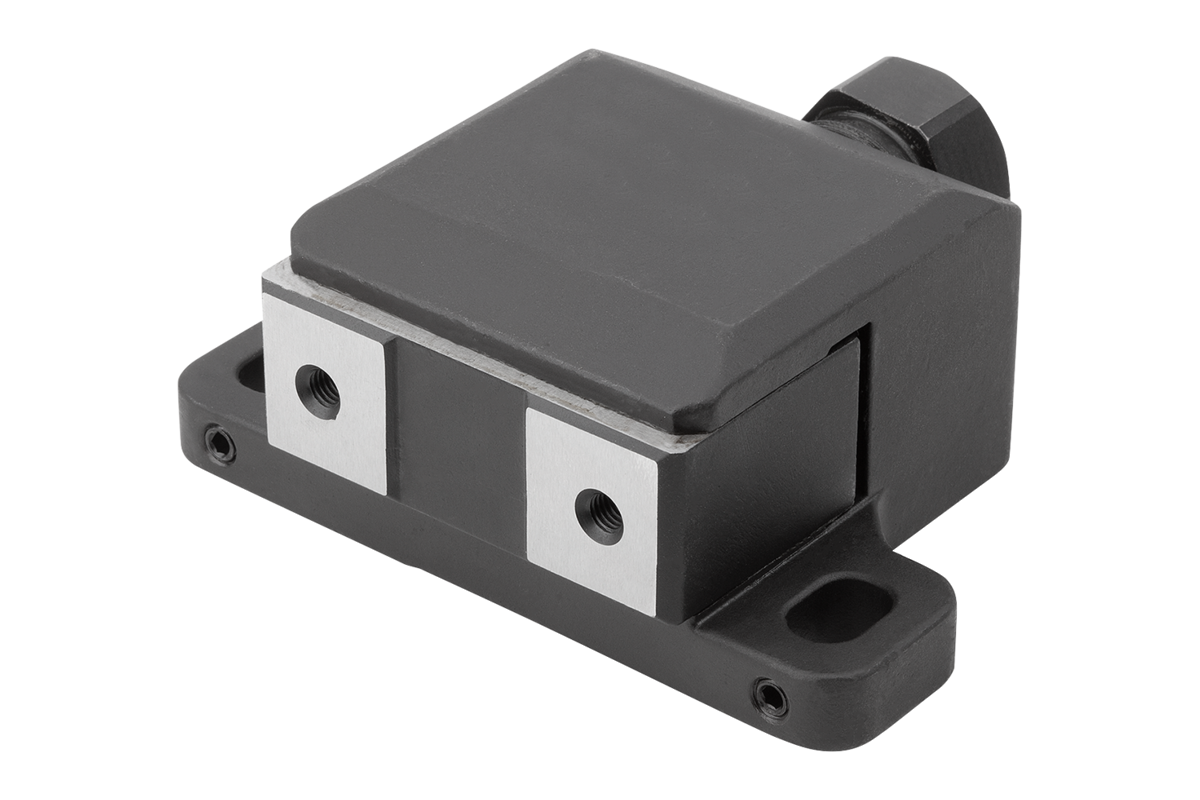

- Ground clamping face

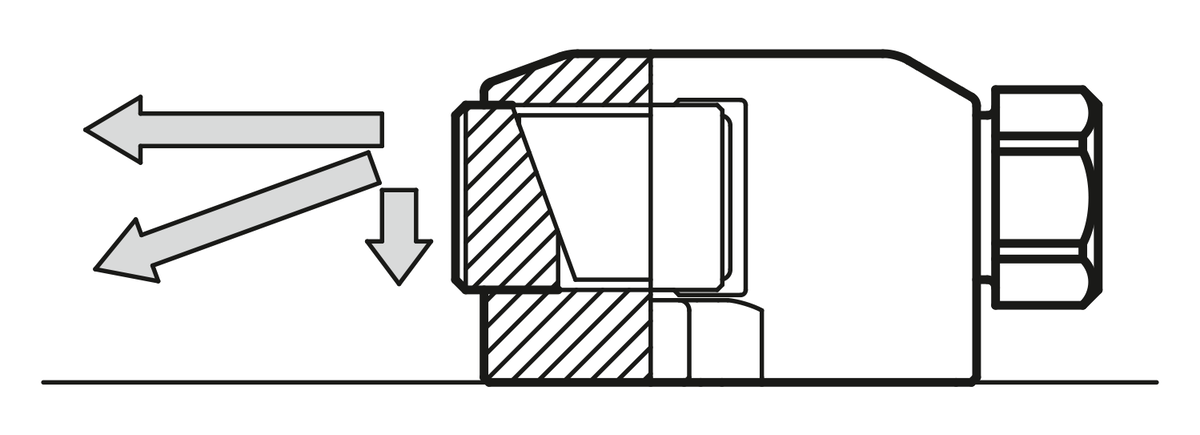

- Pull-down force prevents the workpiece lifting
Description
Material
Body QT steel.
Tension lever QT steel.
Tension lever QT steel.
Version
Body black oxidized.
Clamping face ground.
Clamping face ground.
Note
Tighten the setscrew to prevent the side clamp sliding back during the clamping process. (style A)
Advantages
- High clamping force
- Ground clamping face
- Pull-down force prevents the workpiece lifting
- Ground clamping face
- Pull-down force prevents the workpiece lifting

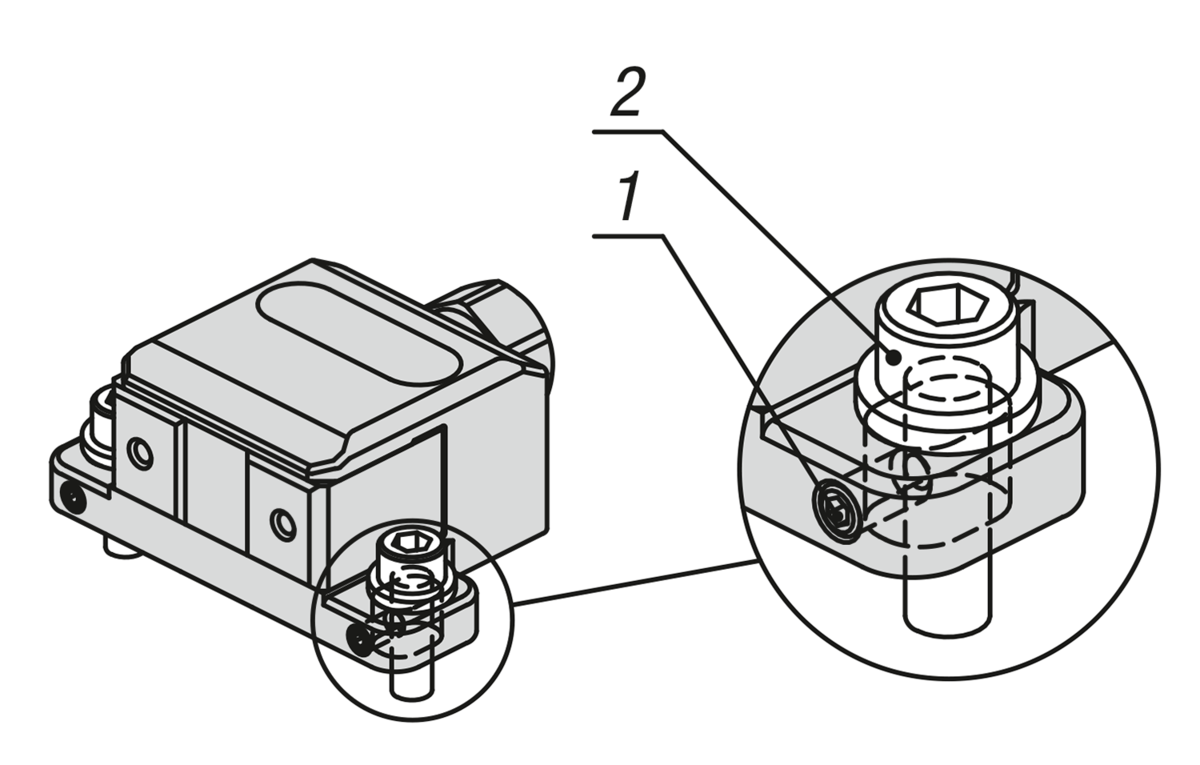

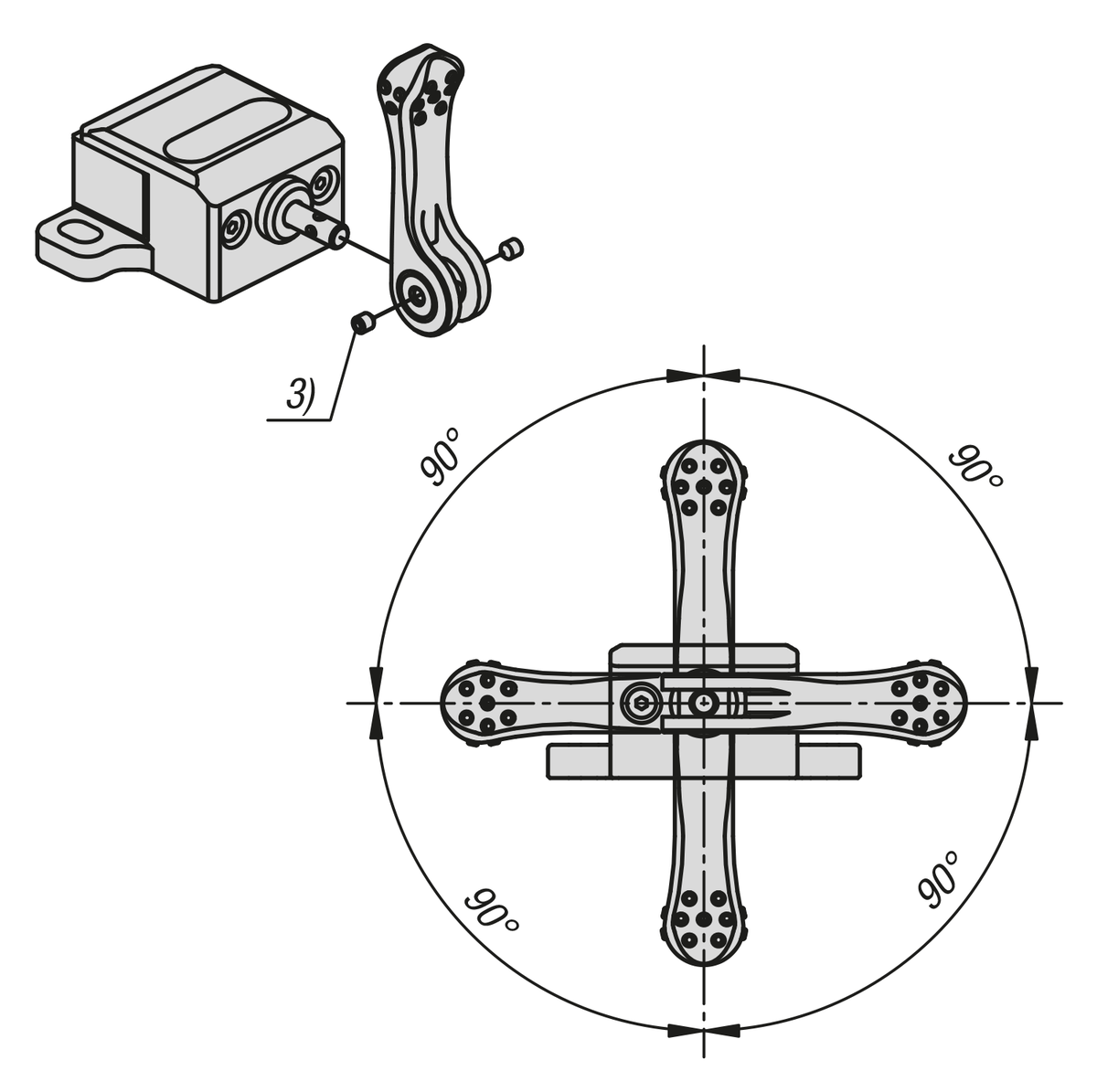

Drawing reference
1) Setscrew
2) Cap screw
3) Grub screw
4) Loosened position
5) Clamping travel
6 )Clamping start position
7) Clamped position
2) Cap screw
3) Grub screw
4) Loosened position
5) Clamping travel
6 )Clamping start position
7) Clamped position
